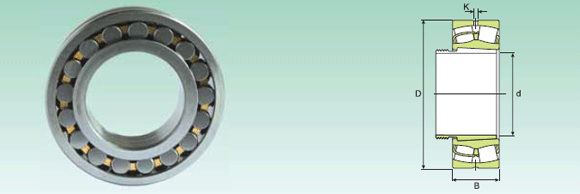

Orientabili con rulli a botte Su bussola di pressione

I cuscinetti ISB® orientabili a rulli hanno due corone di rulli che ruotano in un’unica pista di forma sferica ricavata nell’anello esterno. Le corrispondenti due piste dell’anello interno sono inclinate rispetto all’asse del cuscinetto. Sono orientabili ed insensibili ai disassamenti di modesta entità dell’albero rispetto all’alloggiamento o all’inflessione dello stesso. Sopportano carichi radiali e assiali in entrambi i sensi. Questa serie non ha schermature. Suffissi:

K Foro conico, conicità 1:12
K Foro conico, conicità 1:30
W33 Scanalatura circonferenziale e tre fori di lubrificazione sull’anello esterno

Prodotti:

Sigla
22208 K
21308 K
22308 K
22209 K
21309 K
22309 K
22210 K
21310 K
22310 K
22211 K
21311 K
22311 K
22212 K
21312 K
22312 K
22213 K
21313 K
22313 K
22214 K
21314 K
22314 K
22215 K
21315 K
22315 K
22216 K
21316 K
22316 K
22217 K
21317 K
22317 K
22218 K
23218 EKW33
21318 K
22318 K
22219 K
21319 K
22319 K
23120 EKW33
22220 K
23220 EKW33
21320 K
22320 K
23022 EKW33
23122 EKW33
24122 EK30W33
22222 EKW33
23222 EKW33
22322 EKW33
23024 EKW33
24024 EK30W33
23124 EKW33
24124 EK30W33
22224 EKW33
23224 EKW33
22324 EKW33
23026 EKW33
24026 EK30W33
23126 EKW33
24126 EK30W33
22226 EKW33
23226 EKW33
22326 EKW33
23028 EKW33
24028 EK30W33
23128 EKW33
24128 EK30W33
22228 EKW33
23228 EKW33
22328 EKW33
23030 EKW33
24030 EK30W33
23130 EKW33
24130 EK30W33
22230 EKW33
23230 EKW33
22330 EKW33
23032 EKW33
24032 EK30W33
23132 EKW33
24132 EK30W33
22232 EKW33
23232 EKW33
22332 EKW33
23034 EK30W33
24034 EK30W33
23134 EK30W33
24134 EK30W33
22234 EKW33
23234 EKW33
22334 EKW33
23036 EKW33
24036 EK30W33
23136 EKW33
24136 EK30W33
22236 EKW33
23236 EKW33
22336 EKW33
23038 EKW33
24038 EK30W33
23138 EKW33
24138 EK30W33
22238 EKW33
23238 EKW33
22338 EKW33
23040 EKW33
24040 EK30W33
23140 EKW33
24140 EK30W33
22240 EKW33
23240 EKW33
22340 EKW33
23044 EKW33
24044 EK30W33
23144 EKW33
24144 EK30W33
22244 EKW33
23244 EKW33
22344 EKW33
23048 EKW33
24048 EK30W33
23148 EKW33
24148 EK30W33
22248 EKW33
23248 EKW33
22348 EKW33
23052 EKW33
24052 EK30W33
23152 EKW33
24152 EK30W33
22252 EKW33
23252 EKW33
22352 EKW33
23056 EKW33
24056 EK30W33
23156 EKW33
24156 EK30W33
22256 EKW33
23256 EKW33
22356 EKW33
23060 EKW33
24060 EK30W33
23160 EKW33
24160 EK30W33
22260 EKW33
23260 EKW33
23064 EKW33
24064 EK30W33
23164 EKW33
24164 EK30W33
22264 EKW33
23264 EKW33
23068 EKW33
24068 EK30W33
23168 EKW33
24168 EK30W33
23268 EKW33
23072 EKW33
24072 EK30W33
23172 EKW33
24172 EK30W33
22272 EKW33
23272 EKW33
23076 EKW33
24076 EK30W33
23176 EKW33
24176 EK30W33
23276 EKW33
23080 EKW33
24080 EK30W33
23180 EKW33
24180 EK30W33
23280 EKW33
22380 EKW33
23084 EKW33
24084 EK30W33
23184 EKW33
24184 EK30W33
23284 EKW33
23088 EKW33
24088 EK30W33
23188 EKW33
24188 EK30W33
23288 EKW33
23092 EKW33
24092 EK30W33
23192 EKW33
24192 EK30W33
23292 EKW33
23096 EKW33
24096 EK30W33
23196 EKW33
24196 EK30W33
23296 EKW33
230/500 EKW33
240/500 EK30W33
231/500 EKW33
241/500 EK30W33
232/500 EKW33
230/530 EKW33
240/530 EK30W33
231/530 EKW33
241/530 EK30W33
232/530 EKW33
230/560 EKW33
240/560 EK30W33
231/560 EKW33
241/560 EK30W33
232/560 EKW33
230/600 EKW33
240/600 EK30W33
231/600 EKW33
241/600 EK30W33
232/600 EKW33
230/630 EKW33
240/630 EK30W33
231/630 EKW33
241/630 EK30W33
230/670 EKW33
240/670 EK30W33
231/670 EKW33
241/670 EK30W33
232/670 EKW33
230/710 EKW33
240/710 EK30W33
231/710 EKW33
241/710 EK30W33
232/710 EKW33
230/750 EKW33
240/750 EK30W33
231/750 EKW33
241/750 EK30W33
232/750 EKW33
230/800 EKW33
240/800 EK30W33
231/800 EK30W33
241/800 EKW33
230/850 EKW33
240/850 EK30W33
231/850 EKW33
241/850 EK30W33
230/900 EKW33
240/900 EK30W33
241/900 EK30W33
230/950 EKW33
240/950 EK30W33
241/950 EK30W33
230/1000 EKW33
240/1000 EK30W33
231/1000 EKW33
241/1000 EK30W33
230/1060 EKW33
240/1060 EK30W33

d (mm)	D (mm)	B (mm)	K (mm)	C din (KN)	C0 stat (KN)	Vel. grasso (g/min)	Vel. Olio (g/min)	Peso (Kg)	Sigla anello
35	80	23	3	95	88	8.415	9900	0.6	AH 308
35	90	23	3	102	106	7.268	8550	0.84	AH 308
35	90	33	3	147	137	6.120	7200	1.2	AH 2308
40	85	23	3	100	96	7.650	9000	0.7	AH 309
40	100	25	3	123	124	6.503	7650	1.1	AH 309
40	100	36	3	179	179	5.355	6300	1.55	AH 2309
45	90	23	3	102	106	7.268	8550	0.75	AHX 310
45	110	27	3	153	163	5.738	6750	1.45	AHX 310
45	110	40	3	216	220	4.820	5670	2.1	AHX 2310
50	100	25	3	123	124	6.503	7650	0.95	AHX 311
50	120	29	3	153	163	5.738	6750	1.8	AHX 311
50	120	43	3	265	274	4.284	5040	2.7	AHX 2311
55	110	28	3	153	163	5.738	6750	1.3	AHX 312
55	130	31	3	208	235	4.820	5670	2.2	AHX 312
55	130	46	4.5	304	328	4.055	4770	3.3	AHX 2312
60	120	31	3	189	212	5.355	6300	1.7	AH 313
60	140	33	3	231	265	4.590	5400	2.75	AH 313
60	140	48	4.5	333	353	3.825	4500	4.1	AH 2313
65	125	31	3	204	223	5.126	6030	1.8	AH 314
65	150	35	3	279	319	4.284	5040	3.35	AH 314
65	150	51	4.5	392	421	3.443	4050	4.9	AHX 2314
70	130	31	3	208	235	4.820	5670	1.95	AH 315
70	160	37	3	279	319	4.284	5040	4.15	AH 315
70	160	55	4.5	431	466	3.290	3870	6	AHX 2315
75	140	33	3	231	265	4.590	5400	2.4	AH 316
75	170	39	3	319	368	4.055	4770	4.75	AH 316
75	170	58	4.5	480	529	3.060	3600	7	AHX 2316
80	150	36	3	279	319	4.284	5040	3.05	AHX 317
80	180	41	3	319	368	4.055	4770	5.55	AHX 317
80	180	60	4.5	539	608	2.907	3420	8.15	AHX 2317
85	160	40	3	319	368	4.055	4770	3.7	AHX 318
85	160	52.4	3	348	431	2.907	3420	5	AHX 3218
85	190	43	4.5	372	441	3.672	4320	6.4	AHX 318
85	190	64	6	598	681	2.754	3240	9.5	AHX 2318
90	170	43	4.5	372	441	3.672	4320	4.6	AHX 319
90	200	45	4.5	417	480	3.443	4050	7.4	AHX 319
90	200	67	6	657	750	2.601	3060	11	AHX 2319
95	165	52	3	358	480	3.060	3600	5	AHX 3120
95	180	46	4.5	417	480	3.443	4050	5.4	AHX 320
95	180	60.3	4.5	466	588	2.601	3060	7.3	AHX 3220
95	215	47	4.5	417	480	3.443	4050	9.1	AHX 320
95	215	73	6	799	931	2.295	2700	14	AHX 2320
105	170	45	3	304	431	3.290	3870	4.45	AH 322
105	180	56	4.5	421	573	2.754	3240	6.35	AHX 3122
105	180	69	3	510	735	2.295	2700	7.7	AH 24122
105	200	53	4.5	549	627	3.060	3600	7.5	AHX 3122
105	200	69.8	4.5	588	750	2.448	2880	10.5	AHX 3222
105	240	80	7.5	931	1098	2.142	2520	19.5	AHX 2322
115	180	46	3	348	500	3.060	3600	4.8	AHX 3024
115	180	60	3	421	657	2.601	3060	5.95	AH 24024
115	200	62	4.5	500	681	2.601	3060	8.7	AHX 3124
115	200	80	3	642	931	1.989	2340	10.8	AH 24124
115	215	58	6	617	750	2.907	3420	9.55	AHX 3124
115	215	76	4.5	681	911	2.142	2520	13	AHX 3224
115	260	86	7.5	946	1098	1.989	2340	24	AHX 2324
125	200	52	4.5	421	598	2.754	3240	6.75	AHX 3026
125	200	69	3	529	799	2.295	2700	8.65	AH 24026
125	210	64	4.5	549	764	2.448	2880	9.6	AHX 3126
125	210	80	3	666	980	1.836	2160	11.7	AH 24126
125	230	64	6	720	911	2.754	3240	11.6	AHX 3126
125	230	80	4.5	764	1039	1.989	2340	15.5	AHX 3226
125	280	93	9	1098	1294	1.836	2160	30.5	HX 2326
135	210	53	4.5	456	666	2.601	3060	7.35	HX 3028
135	210	69	3	559	882	2.142	2520	9.2	AH 24028
135	225	68	4.5	617	882	2.142	2520	11.5	AHX 3128
135	225	85	4.5	750	1137	1.836	2160	14.3	2AH 24128
135	250	68	6	696	882	2.448	2880	15	AHX 3128
135	250	88	6	897	1225	1.836	2160	20.5	AHX 3228
135	300	102	9	1264	1529	1.683	1980	38	AHX 2328
145	225	56	4.5	500	735	2.448	2880	8.85	2AHX 3030
145	225	75	3	642	1019	1.989	2340	11.3	AH 24030
145	250	80	6	813	1176	1.989	2340	17	AHX 3130
145	250	100	4.5	1000	1499	1.683	1980	21	AH 24130
145	270	73	7.5	833	1058	2.295	2700	19	AHX 3130
145	270	96	6	1058	1431	1.683	1980	26	AHX 3230
145	320	108	9	1431	1725	1.530	1800	45.5	AHX 2330
150	240	60	6	573	862	2.295	2700	11.5	AH 3032
150	240	80	4.5	735	1176	1.836	2160	14.8	AH 24032
150	270	86	7.5	960	1343	1.836	2160	23	AH 3132
150	270	109	4.5	1156	1725	1.454	1710	28.5	AH 24132
150	290	80	7.5	980	1264	2.142	2520	25	AH 3132
150	290	104	7.5	1196	1627	1.683	1980	34.5	AH 3232
150	340	114	9	1568	1921	1.454	1710	56	AH 2332
160	260	67	6	696	1039	2.142	2520	15	AH 3034
160	260	90	4.5	911	1431	1.836	2160	20	AH 24034
160	280	88	7.5	1019	1470	1.836	2160	25	AH 3134
160	280	109	4.5	1196	1823	1.454	1710	30	AH 24134
160	310	86	9	1098	1431	1.989	2340	31	AH 3134
160	310	110	7.5	1372	1891	1.530	1800	41	AH 3234
160	360	120	9	1725	2117	1.377	1620	65	AH 2334
170	280	74	7.5	813	1225	1.989	2340	19.3	AH 3036
170	280	100	4.5	1058	1695	1.683	1980	25.7	AH 24036
170	300	96	7.5	1176	1725	1.683	1980	32	AH 3136
170	300	118	6	1372	2117	1.301	1530	37	AH 24136
170	320	86	9	1156	1529	1.989	2340	32.5	AH 2236
170	320	112	7.5	1470	2078	1.454	1710	43.5	AH 3236
170	380	126	12	1960	2401	1.301	1530	76	AH 2336
180	290	75	7.5	848	1313	1.836	2160	21	AH 3038
180	290	100	4.5	1098	1764	1.530	1800	27.5	AH 24038
180	320	104	7.5	1343	2038	1.530	1800	38.5	AH 3138
180	320	128	6	1568	2450	1.224	1440	46.5	AH 24138
180	340	92	9	1245	1666	1.836	2160	39.5	AH 2238
180	340	120	9	1627	2352	1.377	1620	52.5	AH 3238
180	400	132	12	2078	2597	1.224	1440	87.5	AH 2338
190	310	82	7.5	980	1499	1.683	1980	26.3	AH 3040
190	310	109	6	1264	2078	1.454	1710	34.5	AH 24040
190	340	112	9	1568	2313	1.454	1710	48.5	AH 3140
190	340	140	6	1764	2744	1.148	1350	57.5	AH 24140
190	360	98	9	1431	1891	1.683	1980	47	AH 2240
190	360	128	9	1823	2646	1.301	1530	63	AH 3240
190	420	138	12	2274	2842	1.148	1350	100	AH 2340
200	340	90	7.5	1196	1823	1.530	1800	36.5	AOH 3044
200	340	118	6	1529	2548	1.301	1530	47.5	AOH 24044
200	370	120	9	1764	2695	1.301	1530	61.5	AOH 3144
200	370	150	6	2078	3283	1.071	1260	76	AOH 24144
200	400	108	9	1725	2313	1.530	1800	68	AOH 2244
200	400	144	9	2313	3381	1.148	1350	93	AOH 2344
200	460	145	12	2646	3381	1.071	1260	130	AOH 2344
220	360	92	7.5	1264	2038	1.454	1710	40.5	AOH 3048
220	360	118	6	1568	2646	1.224	1440	50.5	AOH 24048
220	400	128	9	2038	3136	1.224	1440	76.5	AOH 3148
220	400	160	6	2352	3822	995	1170	91.5	AOH 24148
220	440	120	12	2156	2940	1.377	1620	95	AOH 2248
220	440	160	12	2842	4214	995	1170	120	AOH 2348
220	500	155	12	3038	3920	995	1170	165	AOH 2348
240	400	104	9	1568	2499	1.301	1530	56.5	AOH 3052
240	400	140	6	1999	3381	1.071	1260	75	AOH 24052
240	440	144	9	2499	3822	1.071	1260	105	AOH 3152
240	440	180	7.5	2940	4704	918	1080	120	AOH 24152
240	480	130	12	2597	3479	1.224	1440	120	AOH 2252
240	480	174	12	3185	4655	918	1080	155	AOH 2352
240	540	165	12	3479	4459	842	990	205	AOH 2352
260	420	106	9	1695	2793	1.224	1440	62	AOH 3056
260	420	140	6	2117	3724	1.071	1260	79	AOH 24056
260	460	146	9	2597	4165	995	1170	110	AOH 3156
260	460	180	7.5	3038	4998	842	990	130	AOH 24156
260	500	130	12	2646	3675	1.148	1350	125	AOH 2256
260	500	176	12	3185	4802	842	990	160	AOH 2356
260	580	175	12	3920	5096	842	990	245	AOH 2356
280	460	118	9	2078	3381	1.148	1350	82.5	AOH 3060
280	460	160	7.5	2646	4655	918	1080	110	AOH 24060
280	500	160	9	3136	4998	918	1080	140	AOH 3160
280	500	200	7.5	3675	6174	765	900	180	AOH 24160
280	540	140	12	3087	4165	1.071	1260	155	AOH 2260
280	540	192	12	3822	5733	765	900	200	AOH 3260
300	480	121	9	2195	3724	1.071	1260	89	AOH 3064
300	480	160	7.5	2793	4998	918	1080	115	AOH 24064
300	540	176	12	3675	5880	842	990	175	AOH 3164
300	540	218	9	4165	6958	689	810	225	AOH 24164
300	580	150	12	3528	4802	995	1170	185	AOH 2264
300	580	208	12	4312	6566	726.75	855	250	AOH 3264
320	520	133	12	2646	4459	995	1170	120	AOH 3068
320	520	180	9	3381	6076	842	990	160	AOH 24068
320	580	190	12	4165	6664	765	900	225	AOH 3168
320	580	243	9	5194	8477	650.25	765	295	AOH 24168
320	620	224	12	4998	7644	612	720	315	AOH 3268
340	540	134	12	2695	4704	918	1080	125	AOH 3072
340	540	180	9	3479	6419	765	900	165	AOH 24072
340	600	192	12	4214	6811	765	900	235	AOH 3172
340	600	243	9	5488	9114	612	720	295	AOH 24172
340	650	170	12	4214	6076	650.25	765	275	AOH 3172
340	650	232	12	5292	8134	573.75	675	345	AOH 3272
360	560	135	12	2842	4900	918	1080	135	AOH 3076
360	560	180	9	3528	6664	726.75	855	170	AOH 24076
360	620	194	12	4312	6958	765	900	250	AOH 3176
360	620	243	9	5586	9604	650.25	765	325	AOH 24176
360	680	240	12	5733	8967	573.75	675	390	AOH 3276
380	600	148	12	3185	5586	842	990	165	AOH 3080
380	600	200	12	4214	7840	689	810	220	AOH 24080
380	650	200	12	4557	7497	726.75	855	290	AOH 3180
380	650	250	12	6076	10388	612	720	365	AOH 24180
380	720	256	12	6419	10192	512.55	603	470	AOH 3280
380	820	243	12	7350	10192	573.75	675	675	AOH 3280
400	620	150	12	3332	5880	842	990	175	AOH 3084
400	620	200	12	4312	8134	689	810	230	AOH 24084
400	700	224	12	5488	9114	689	810	375	AOH 3184
400	700	280	12	7203	12348	536	630	470	AOH 24184
400	760	272	12	7203	11368	481.95	567	550	AOH 3284
420	650	157	12	3577	6419	765	900	200	AOHX 3088
420	650	212	12	4704	8967	650.25	765	275	AOH 24088
420	720	226	12	5880	9800	650.25	765	380	AOHX 3188
420	720	280	12	7350	12936	536	630	490	AOH 24188
420	790	280	12	7644	12250	459	540	620	AOHX 3288
440	680	163	12	3822	6811	726.75	855	225	AOHX 3092
440	680	218	12	5096	9800	612	720	300	AOH 24092
440	760	240	12	6272	10584	612	720	465	AOHX 3192
440	760	300	12	8134	14308	512.55	603	590	AOH 24192
440	830	296	12	8330	13426	428	504	725	AOHX 3292
460	700	165	12	3822	6664	726.75	855	235	AOHX 3096
460	700	218	12	5194	10192	573.75	675	310	AOH 24096
460	790	248	12	6811	11760	573.75	675	515	AOHX 3196
460	790	308	12	8820	15288	481.95	567	635	AOH 24196
460	870	310	12	9114	14700	405.45	477	860	AOHX 3296
480	720	167	12	4067	7644	689	810	250	AOHX 30/500
480	720	218	12	5390	10780	536	630	325	AOH 240/500
480	830	264	12	7497	12642	536	630	610	AOHX 31/500
480	830	325	12	9604	16660	459	540	735	AOH 241/500
480	920	336	12	10388	16954	383	450	1020	AOHX 32/500
500	780	185	12	4998	9114	612	720	365	AOH 30/530
500	780	250	12	6566	12936	512.55	603	455	AOH 240/530
500	870	272	12	7987	13720	512.55	603	720	AOH 31/530
500	870	335	12	10388	18620	428	504	885	AOH 241/530
500	980	355	12	10878	19992	367	432	1290	AOH 32/530
530	820	195	12	4480	9180	540	675	430	AOH 30/560
530	820	258	12	5880	13140	453.6	567	515	AOH 240/560
530	920	280	12	7320	14400	453.6	567	850	AOH 31/560
530	920	355	12	9600	19440	360	450	1060	AOH 241/560
530	1030	365	12	9200	19800	309.6	387	1500	AOH 32/560
570	870	200	12	4800	10260	504	630	480	AOH 30/600
570	870	272	12	6520	15300	403.2	504	600	AOH 240/600
570	980	300	12	8160	16200	403.2	504	1010	AOH 31/600
570	980	375	12	9200	21240	345.6	432	1290	AOH 241/600
570	1090	388	12	10480	22950	288	360	1760	AOH 32/600
600	920	212	12	5360	11250	482.4	603	575	AOH 30/630
600	920	290	12	7040	16200	381.6	477	730	AOH 240/630
600	1030	315	12	8400	18720	381.6	477	1190	AOH 31/630
600	1030	400	12	10160	24300	324	405	1500	AOH 241/630
630	980	230	12	6120	13140	432	540	720	AOH 30/670
630	980	308	12	8000	18360	360	450	900	AOH 240/670
630	1030	315	12	8400	18720	381.6	477	1430	AOH 31/670
630	1090	412	12	11040	26100	288	360	1730	AOH 241/670
630	1220	438	12	12320	27450	259.2	324	2500	AOH 32/670
670	1030	236	12	6640	14670	403.2	504	800	AOH 30/710
670	1030	315	12	8480	20520	324	405	1010	AOH 240/710
670	1150	345	12	9760	23400	324	405	1650	AOH 31/710
670	1150	438	12	12160	29250	273.6	342	2040	AOH 241/710
670	1280	450	12	14080	31050	230.4	288	2810	AOH 32/710
710	1090	250	12	7720	16740	381.6	477	950	AOH 30/750
710	1090	335	12	9440	22500	309.6	387	1200	AOH 240/750
710	1220	365	12	11040	26100	309.6	387	1930	AOH 31/750
710	1220	475	12	13840	33750	259.2	324	2280	AOH 241/750
710	1360	475	12	14960	32850	216	270	3280	AOH 32/750
750	1150	258	12	8000	18000	345.6	432	1100	AOH 30/800
750	1150	345	12	10320	25650	288	360	1380	AOH 240/800
750	1280	375	12	11840	28350	288	360	2200	AOH 31/800
750	1280	475	12	14720	36450	230.4	288	2540	AOH 241/800
800	1220	272	12	7496	19440	324	405	1250	AOH 30/850
800	1220	365	12	10160	28350	259.2	324	1670	AOH 240/850
800	1360	400	12	12880	31050	259.2	324	2500	AOH 31/850
800	1360	500	12	16160	40500	216	270	3050	AOH 241/850
850	1280	280	12	8080	20880	288	360	1450	AOH 30/900
850	1280	375	12	10880	31050	244.8	306	1850	AOH 240/900
850	1420	515	12	17120	44100	201.6	252	3700	AOH 241/900
900	1360	300	12	9600	25650	273.6	342	1720	AOH 30/950
900	1360	412	12	11840	35100	216	270	2300	AOH 240/950
900	1500	545	12	19120	49500	187.2	234	3950	AOH 241/950
950	1420	308	12	10160	27450	259.2	324	1900	AOH 30/1000
950	1420	412	12	12320	36450	201.6	252	2500	AOH 240/1000
950	1580	462	12	17120	43200	201.6	252	3950	AOH 31/1000
950	1580	580	12	21360	55800	172.8	216	4800	AOH 241/1000
1000	1500	325	12	11040	30600	230.4	288	2600	AOH 30/1060
1000	1500	438	12	13840	40950	187.2	234	2950	AOH 240/1060

Descr. Agg.	Descr. Agg.	Quant	Ordina

Nessun prodotto selezionato

Orientabili con rulli a botte Su bussola di pressione

Prodotti:

sitemap

prodotti

negozio online

I-SERVICE SRL
