A 2 giri di rulli cilindrici Alta precisione

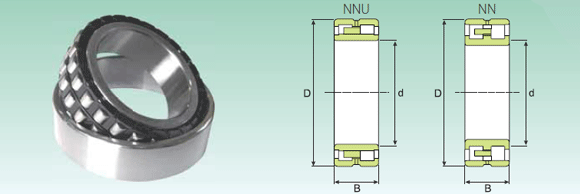

I cuscinetti a due corone di rulli cilindrici di solito hanno un piccolo ingombro radiale, una forte capacità di carico e una elevata rigidità strutturale. Prefissi: NNU rulli sono guidati fra gli orletti dell’anello esterno, con NN fra gli orletti dell’anello interno. L’altro anello è privo di orletti e sono permessi moderati spostamenti assiali dell’albero rispetto alla sede. Sono smontabili, i rulli e la gabbia possono essere sfilati dall’ anello privo di orletti e assemblati separatamente. Il loro montaggio è quindi semplice. Possono avereforo cilindrico o conico. Per la lubrificazione hanno una scanalatura circolare e tre o sei fori sull’anello esterno. Suffissi:

SP super precisione
K Foro conico, conicità 1:12
W33 Scanalatura circonferenziale e tre fori di lubrificazione sull’anello esterno
TN Gabbia stampata ad iniezione, a scatto, in poliammide 6.6 rinforzata con fibre di vetro

Prodotti:

Sigla
NN 3005 K/SP
NN 3005/SP
NN 3006 KTN/SP
NN 3006 TN/SP
NN 3007 K/SP
NN 3007/SP
NN 3008 KTN/SP
NN 3008 TN/SP
NN 3009 KTN/SP
NN 3009 TN/SP
NN 3010 KTN/SP
NN 3010 TN/SP
NN 3011 KTN/SP
NN 3011 TN/SP
NN 3012 KTN/SP
NN 3012 TN/SP
NN 3013 KTN/SP
NN 3013 TN/SP
NN 3014 KTN/SP
NN 3014 TN/SP
NN 3015 KTN/SP
NN 3015 TN/SP
NN 3016 KTN/SP
NN 3016 TN/SP
NN 3017 KTN9/SP
NN 3017 TN9/SP
NN 3018 KTN9/SP
NN 3018 TN9/SP
NN 3019 KTN9/SP
NN 3019 TN9/SP
NNU 4920 SPW33
NNU 4920 K/SPW33
NN 3020 KTN9/SP
NN 3020 TN9/SP
NNU 4921 SPW33
NNU 4921 K/SPW33
NN 3021 KTN9/SP
NN 3021 TN9/SP
NNU 4922 SPW33
NNU 4922 K/SPW33
NN 3022 KTN9/SP
NN 3022 TN9/SP
NNU 4924 SPW33
NNU 4924 K/SPW33
NN 3024 KTN9/SP
NN 3024 TN9/SP
NNU 4926 SPW33
NNU 4926 K/SPW33
NN 3026 KTN9/SP
NN 3026 TN9/SP
NNU 4928 SPW33
NNU 4928 K/SPW33
NN 3028 K/SPW33
NN 3028/SPW33
NNU 4930 SPW33
NNU 4930 K/SPW33
NN 3030 K/SPW33
NN 3030/SPW33
NNU 4932 SPW33
NNU 4932 K/SPW33
NN 3032 K/SPW33
NN 3032/SPW33
NNU 4934 SPW33
NNU 4934 K/SPW33
NN 3034 K/SPW33
NN 3034/SPW33
NNU 4936 SPW33
NNU 4936 K/SPW33
NN 3036 K/SPW33
NN 3036/SPW33
NNU 4938 SPW33
NNU 4938 K/SPW33
NN 3038 K/SPW33
NN 3038/SPW33
NNU 4940 SPW33
NNU 4940 K/SPW33
NN 3040 K/SPW33
NN 3040/SPW33
NNU 4944 SPW33
NNU 4944 K/SPW33
NN 3044 K/SPW33
NN 3044/SPW33
NNU 4948 SPW33
NNU 4948 K/SPW33
NN 3048 K/SPW33
NN 3048/SPW33
NNU 4952 SPW33
NNU 4952 K/SPW33
NN 3052 K/SPW33
NN 3052/SPW33
NNU 4956 SPW33
NNU 4956 K/SPW33
NN 3056 K/SPW33
NN 3056/SPW33
NNU 4960 SPW33
NNU 4960 K/SPW33
NN 3060 K/SPW33
NN 3060/SPW33
NNU 4964 SPW33
NNU 4964 K/SPW33
NN 3064 K/SPW33
NNU 4968 SPW33
NNU 4968 K/SPW33
NN 3068 K/SPW33
NNU 4972 SPW33
NNU 4972 K/SPW33
NN 3072 K/SPW33
NNU 4976 SPW33
NNU 4976 K/SPW33
NN 3076 K/SPW33
NNU 4980 SPW33
NNU 4980 K/SPW33
NN 3080 K/SPW33
NNU 4984 SPW33
NNU 4984 K/SPW33
NN 3084 K/SPW33
NNU 4992 SPW33
NNU 4992 K/SPW33
NN 3092 K/SPW33
NNU 49/500 SPW33X
NNU 49/500 K/SPW33X
NNU 49/600 SPW33X
NNU 49/600 K/SPW33X
NNU 49/670 SPW33X
NNU 49/670 K/SPW33X

d (mm)	D (mm)	B (mm)	C din (KN)	C0 stat (KN)	Vel. grasso (g/min)	Vel. Olio (g/min)	Peso (Kg)
25	47	16	25.48	29.4	18430	21340	0.12
25	47	16	25.48	29.4	18430	21340	0.12
30	55	19	30184.0	36.75	15520	17460	0.19
30	55	19	30184.0	36.75	15520	17460	0.19
35	62	20	38318.0	49	13580	15520	0.25
35	62	20	38318.0	49	13580	15520	0.25
40	68	21	42042.0	54.88	11640	13580	0.30
40	68	21	42042.0	54.88	11640	13580	0.30
45	75	23	49098.0	64.19	10670	12610	0.38
45	75	23	49098.0	64.19	10670	12610	0.38
50	80	23	51744.0	72.03	9700	11640	0.42
50	80	23	51744.0	72.03	9700	11640	0.42
55	90	26	67914.0	94.57	9215	10670	0.62
55	90	26	67914.0	94.57	9215	10670	0.62
60	95	26	72226.0	103.88	8730	9700	0.66
60	95	26	72226.0	103.88	8730	9700	0.66
65	100	26	74.97	113.68	8245	9215	0.71
65	100	26	74.97	113.68	8245	9215	0.71
70	110	30	94864.0	147	7275	8245	1.00
70	110	30	94864.0	147	7275	8245	1.00
75	115	30	94864.0	147	6790	7760	1.10
75	115	30	94864.0	147	6790	7760	1.10
80	125	34	116.62	182.28	6499	7275	1.45
80	125	34	116.62	182.28	6499	7275	1.45
85	130	34	122.5	199.92	6111	6790	1.60
85	130	34	122.5	199.92	6111	6790	1.60
90	140	37	135.24	211.68	5820	6499	2.00
90	140	37	135.24	211.68	5820	6499	2.00
95	145	37	139.16	227.36	5432	6111	2.10
95	145	37	139.16	227.36	5432	6111	2.10
100	140	40	125.44	249.9	5432	6111	1.90
100	140	40	125.44	249.9	5432	6111	1.90
100	150	37	147.98	245	5141	5820	2.20
100	150	37	147.98	245	5141	5820	2.20
105	145	40	127.4	254.8	5141	5820	2.00
105	145	40	127.4	254.8	5141	5820	2.00
105	160	41	186.2	298.9	4850	5432	2.70
105	160	41	186.2	298.9	4850	5432	2.70
110	150	40	129.36	264.6	5141	5820	2.05
110	150	40	129.36	264.6	5141	5820	2.05
110	170	45	215.6	352.8	4656	5141	3.40
110	170	45	215.6	352.8	4656	5141	3.40
120	165	45	172.48	333.2	4656	5141	2.80
120	165	45	172.48	333.2	4656	5141	2.80
120	180	46	224.42	382.2	4365	4850	3.70
120	180	46	224.42	382.2	4365	4850	3.70
130	180	50	183.26	382.2	4171	4656	3.85
130	180	50	183.26	382.2	4171	4656	3.85
130	200	52	280.28	470.4	3880	4365	5.55
130	200	52	280.28	470.4	3880	4365	5.55
140	190	50	186.2	392	3880	4365	4.10
140	190	50	186.2	392	3880	4365	4.10
140	210	53	291.06	509.6	3686	4171	6.00
140	210	53	291.06	509.6	3686	4171	6.00
150	210	60	323.4	641.9	3686	4171	6.25
150	210	60	323.4	641.9	3686	4171	6.25
150	225	56	323.4	558.6	3492	3880	7.30
150	225	56	323.4	558.6	3492	3880	7.30
160	220	60	323.4	666.4	3492	3880	6.60
160	220	60	323.4	666.4	3492	3880	6.60
160	240	60	361.62	641.9	3298	3686	8.80
160	240	60	361.62	641.9	3298	3686	8.80
170	230	60	329.28	681.1	3298	3686	6.95
170	230	60	329.28	681.1	3298	3686	6.95
170	260	67	447.86	784	3104	3492	12.0
170	260	67	447.86	784	3104	3492	12.0
180	250	69	393.96	833	2910	3298	10.5
180	250	69	393.96	833	2910	3298	10.5
180	280	74	549.78	980	2716	3104	16.0
180	280	74	549.78	980	2716	3104	16.0
190	260	69	393.96	862.4	2716	3104	11.0
190	260	69	393.96	862.4	2716	3104	11.0
190	290	75	582.12	1058.4	2522	2910	17.0
190	290	75	582.12	1058.4	2522	2910	17.0
200	280	80	474.32	1019.2	2522	2910	15.0
200	280	80	474.32	1019.2	2522	2910	15.0
200	310	82	631.12	1117.2	2328	2716	21.0
200	310	82	631.12	1117.2	2328	2716	21.0
220	300	80	501.76	1117.2	2328	2716	16.5
220	300	80	501.76	1117.2	2328	2716	16.5
220	340	90	792.82	1430.8	2134	2522	27.5
220	340	90	792.82	1430.8	2134	2522	27.5
240	320	80	517.44	1195.6	2134	2522	17.5
240	320	80	517.44	1195.6	2134	2522	17.5
240	360	92	825.16	1528.8	1940	2328	30.5
240	360	92	825.16	1528.8	1940	2328	30.5
260	360	100	733.04	1666	1940	2328	30.5
260	360	100	733.04	1666	1940	2328	30.5
260	400	104	999.6	1891.4	1843	2134	44.0
260	400	104	999.6	1891.4	1843	2134	44.0
280	380	100	749.7	1764	1843	2134	32.5
280	380	100	749.7	1764	1843	2134	32.5
280	420	106	1058.4	2038.4	1746	1940	47.5
280	420	106	1058.4	2038.4	1746	1940	47.5
300	420	118	999.6	2312.8	1746	1940	48.0
300	420	118	999.6	2312.8	1746	1940	48.0
300	460	118	1225	2352	1649	1843	66.5
300	460	118	1225	2352	1649	1843	66.5
320	440	118	1038.8	2450	1649	1843	50.0
320	440	118	1038.8	2450	1649	1843	50.0
320	480	121	1293.6	2548	1552	1746	71.0
340	460	118	1078	2597	1455	1649	53.0
340	460	118	1078	2597	1455	1649	53.0
340	520	133	1617	3185	1358	1552	94.5
360	480	118	1097.6	2744	1455	1649	55.0
360	480	118	1097.6	2744	1455	1649	55.0
360	540	134	1685.6	3381	1261	1455	102
380	520	140	1421	3528	1261	1455	83.5
380	520	140	1421	3528	1261	1455	83.5
380	560	135	1646.4	3381	1261	1455	105
400	540	140	1440.6	3724	1261	1455	87.5
400	540	140	1440.6	3724	1261	1455	87.5
400	600	148	2116.8	4410	1164	1358	135
420	560	140	1479.8	3920	1164	1358	91.0
420	560	140	1479.8	3920	1164	1358	91.0
420	620	150	2077.6	4410	1067	1261	140
460	620	160	2048.2	5390	970	1164	130
460	620	160	2048.2	5390	970	1164	130
460	680	163	2548	5390	970	1164	190
500	670	170	2283.4	5978	921.5	1067	165
500	670	170	2283.4	5978	921.5	1067	165
600	800	200	3508.4	9996	776	873	280
600	800	200	3508.4	9996	776	873	280
670	900	230	4851	13426	679	776	410
670	900	230	4851	13426	679	776	410
